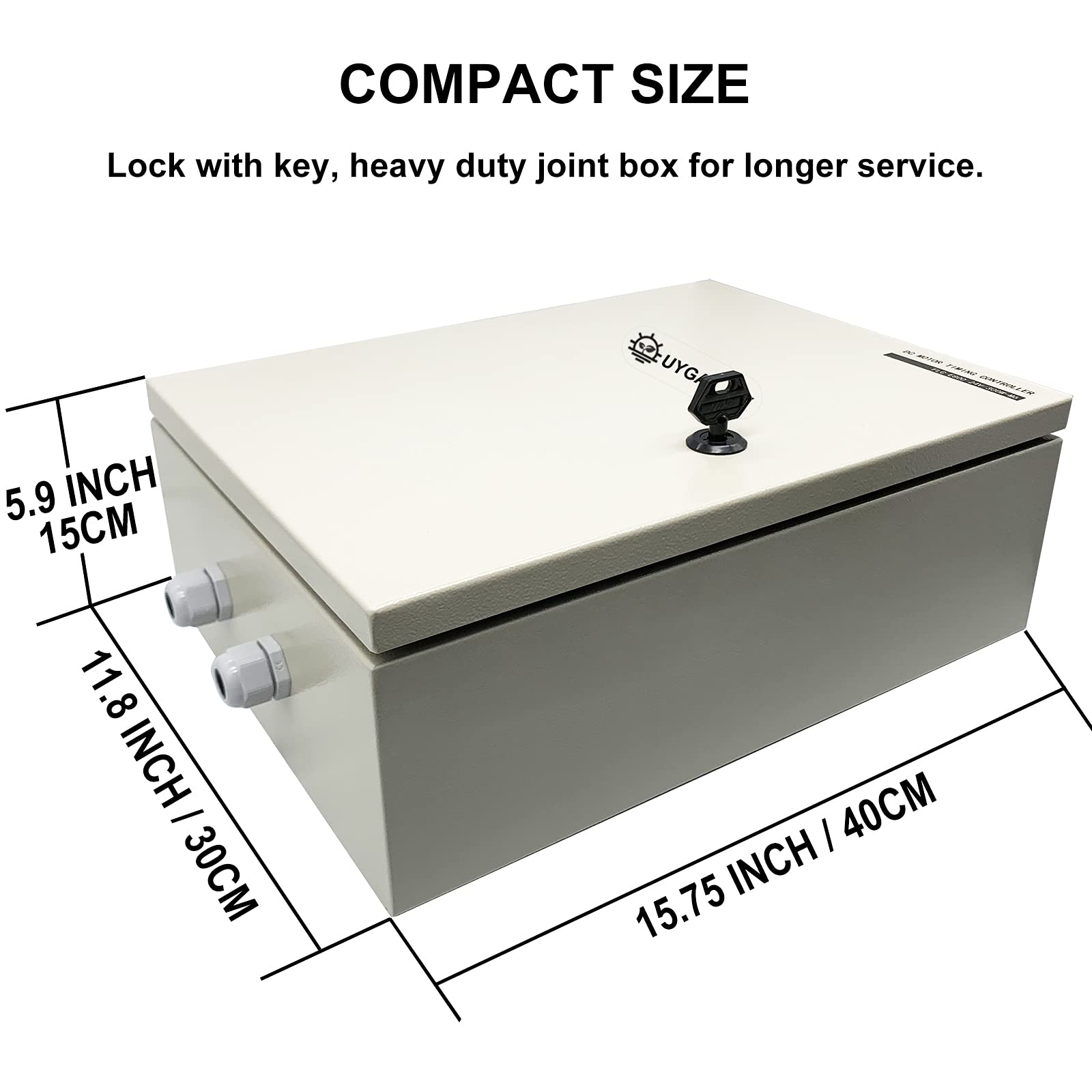

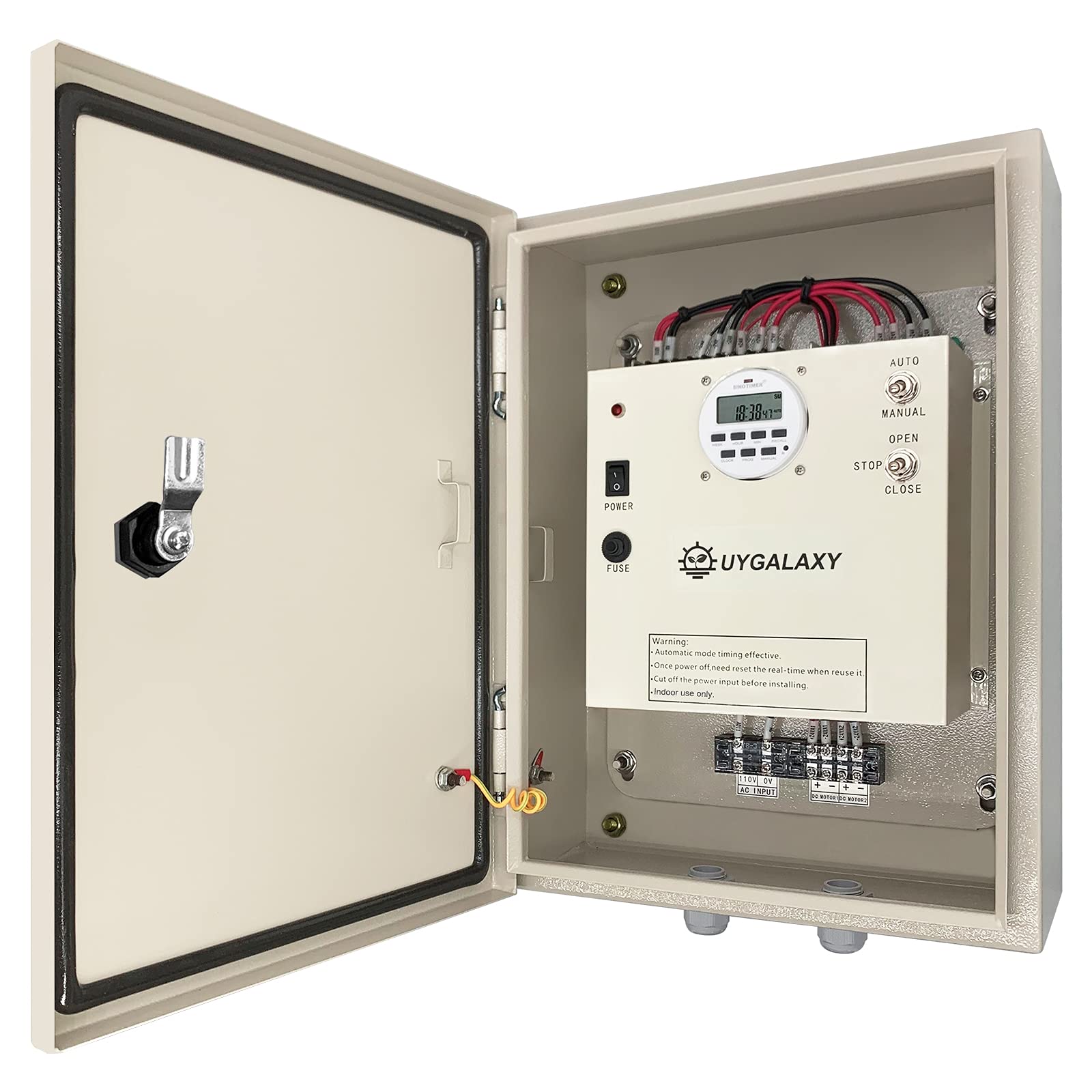

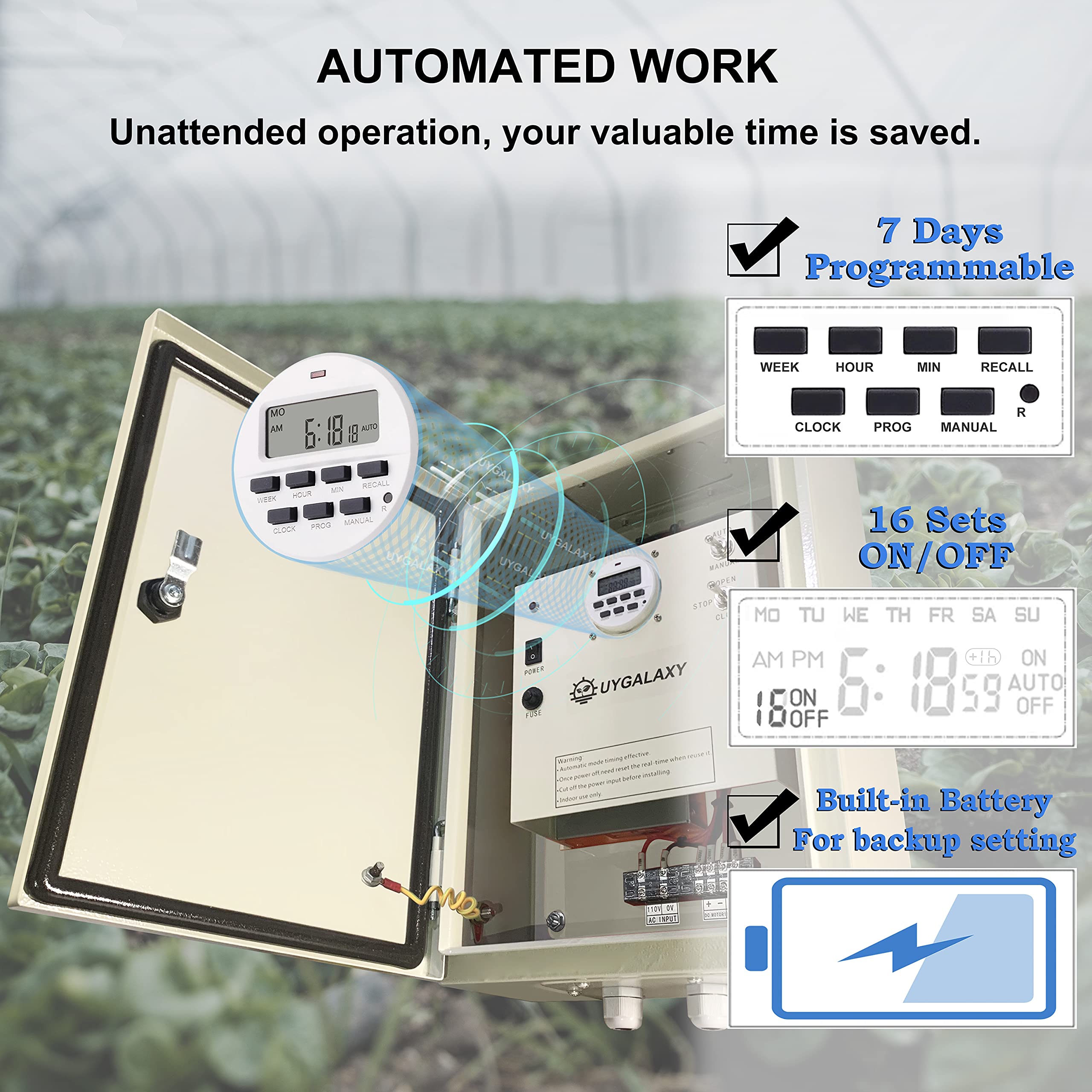

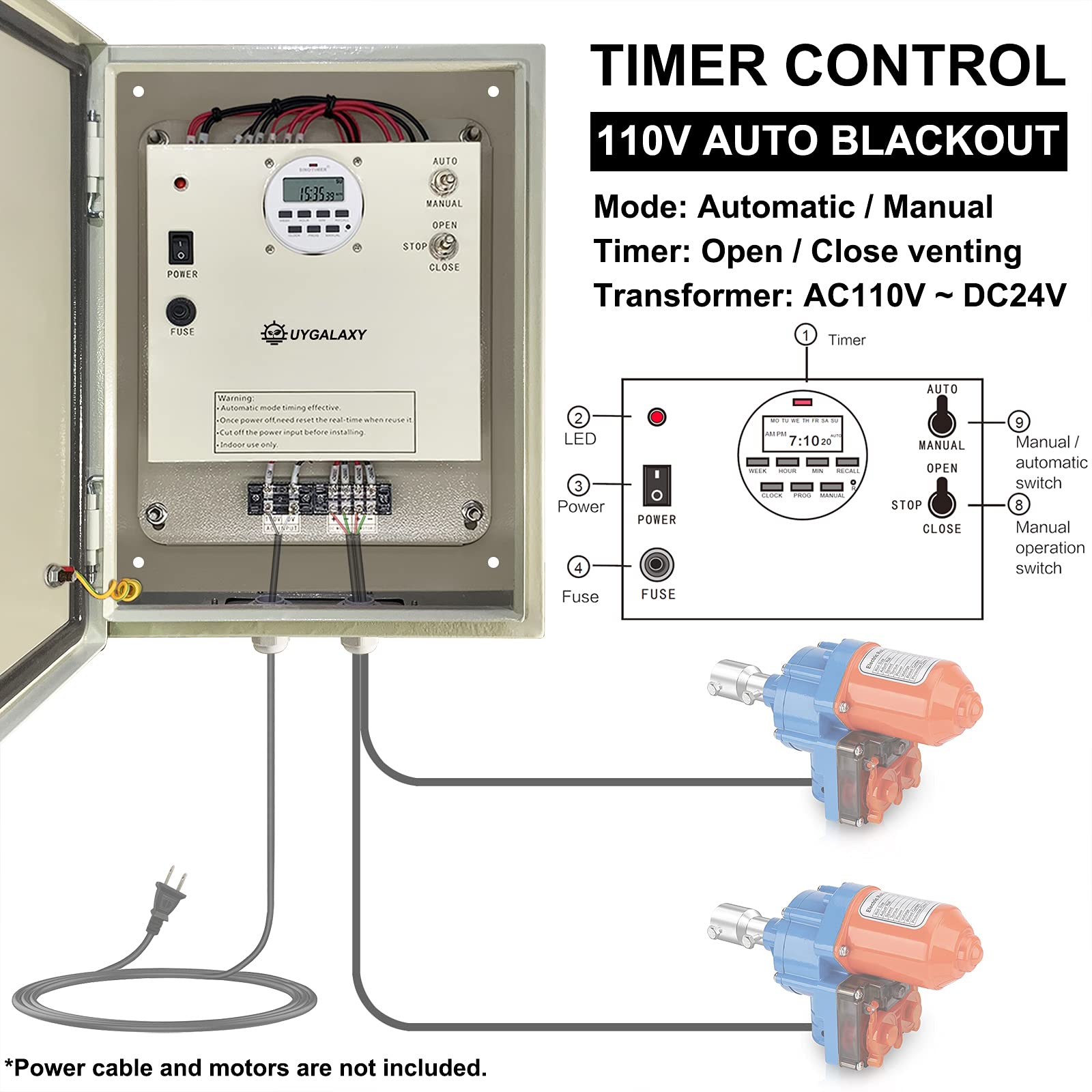

Auto Black Out System Component Swith1: ON/OFFFuse: 10A Press to resetToggle1: Auto/ManualToggle2: Open/Stop/Close Window by hand Switch Style: Maintained (switch the toggles, the motors will keep running until the limit is reached.) Suggest to wire up 10amp fuse for each channel of motor Timer Controller 7days Programmable with 16 on/off setting It Repeats The Settings For Every Week Input: AC 110VOutput1: DC 24VOutput2: DC 24VJoint box: 300W Transformer + programmable timerSize: 15.7*11.8*5.9inch 1.The motor with limit switch would stop once hitting the limit. 2.10A fuse for two channel of outputs. 3.Please install it inside the house. 4.The product is with timer, it's main for controlling the motors unattended.. 5.Please charge the timer's battery firstly for an hour when you receive the controller Details of the controller Programmable timer Easy set, just follow the manual. Set the local timeSet the time of ON(open)/Off(Close)Set it as auto mode Connection panel For AC Input: Connect the black wire(L,live) to 110V and connect the white wire(N,neutral) to 0V Grounding Individual grounding bar (Optional) Please carefully if wire it, make sure you are using grounding wireOr easily connect a wire between the metal shell and the earth Wide Use in your Greenhouse Vegetable & Herb Fruit & Flower Chicken & Livestock Save Labor 24V Motor for Top 24V Motor for Side 24V Motor for Top 24V Motor for Side Basic Controller Basic Controller Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.9 out of 5 stars 11 4.3 out of 5 stars 15 5.0 out of 5 stars 2 5.0 out of 5 stars 6 3.9 out of 5 stars 20 3.9 out of 5 stars 20 Price $103.99$103.99 $109.99$109.99 $105.99$105.99 $109.99$109.99 $105.99$105.99 $109.99$109.99 Power 100W 100W 100W 100W 200W 200W Rated Current 3.6A 3.6A 4.0A 4.0A 6.0A 6.0A Max Travel 12.9ft 12.9ft 19ft 19ft - no data - no data Max Tube Length 360ft 360ft 360ft 360ft - no data - no data Waterproof IP66 IP66 IP66 IP66 IP54 IP54 Added Accessories - no data Creeper Pivot Set Creeper - no data - no data UYGALAXY Greenhouse Roll Up Motor Timing Controller Automating the work.Compact size and easy installation.Collocate with 24V roll up motor or linear actuator.It doesn't contain a limit switch, but motor usually has. Tips: Above motors are recommended to collocate.It's suggested to use 16 AWG wires for motors if the wire is within 165ft (50m), the extension wire is not included. UYGALAXY Greenhouse Roll Up Motor Timing Controller Automating the work.Compact size and easy installation.Collocate with 24V roll up motor or linear actuator.It doesn't contain a limit switch, but motor usually has. Tips: Above motors are recommended to collocate.It's suggested to use 16 AWG wires for motors if the wire is within 165ft (50m), the extension wire is not included.
