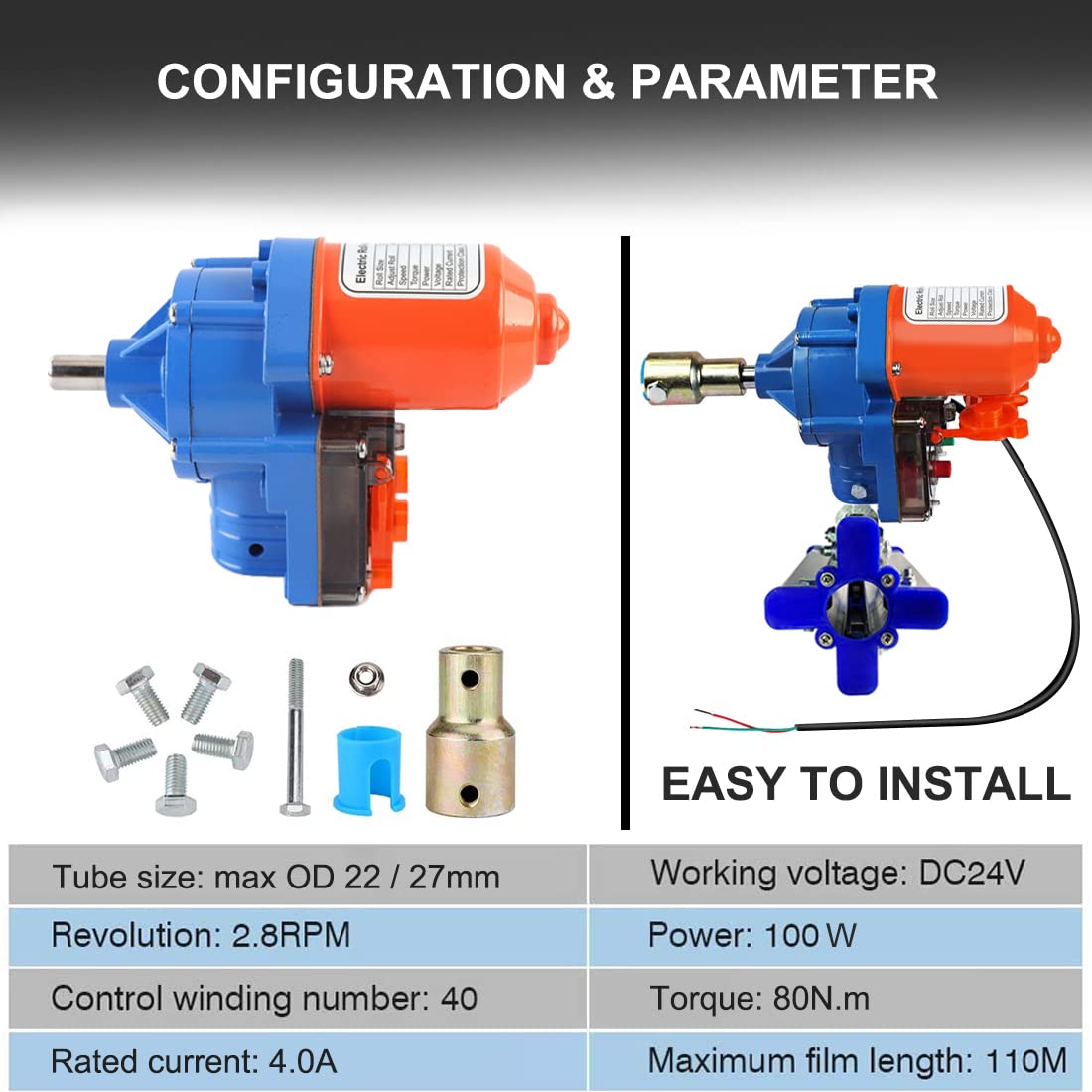

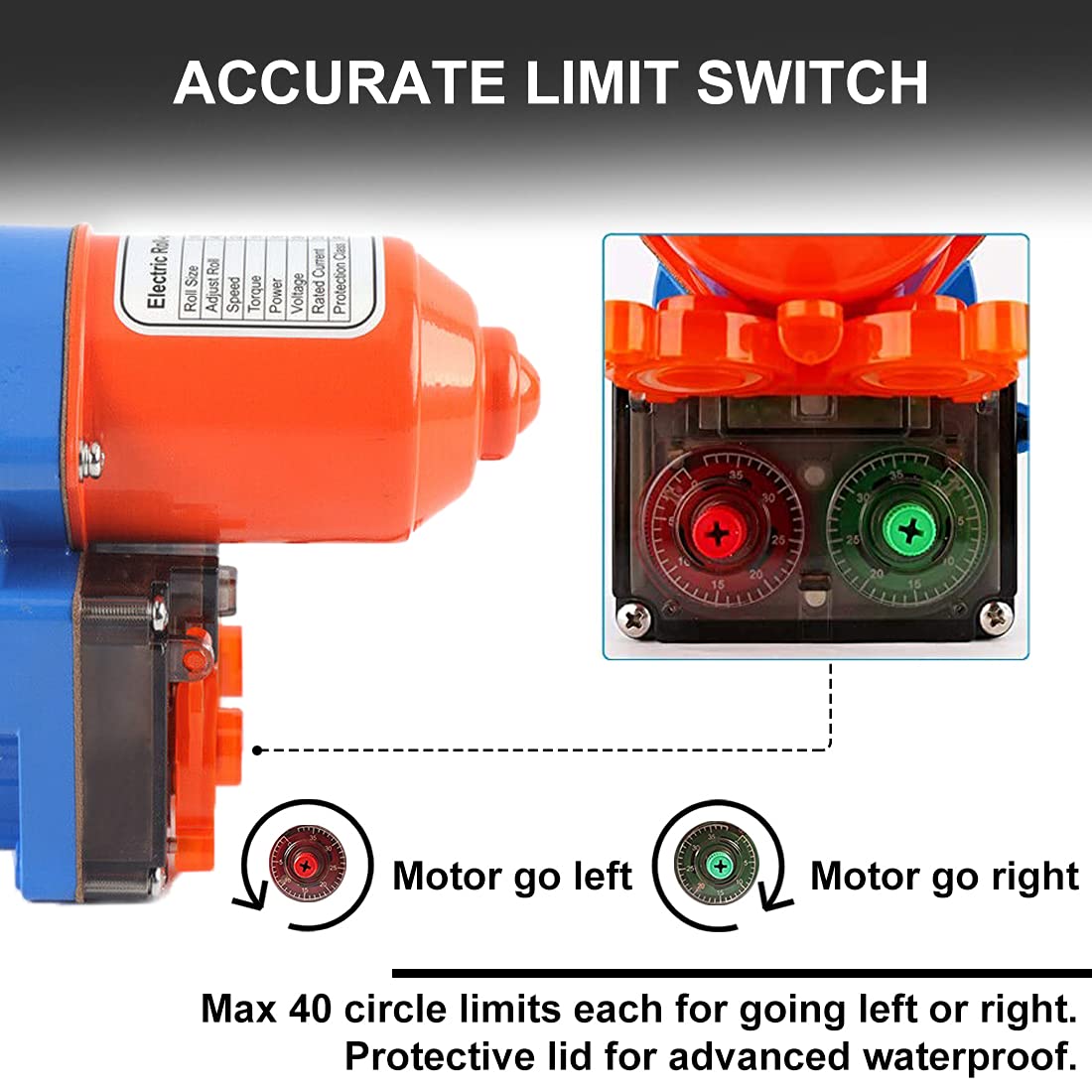

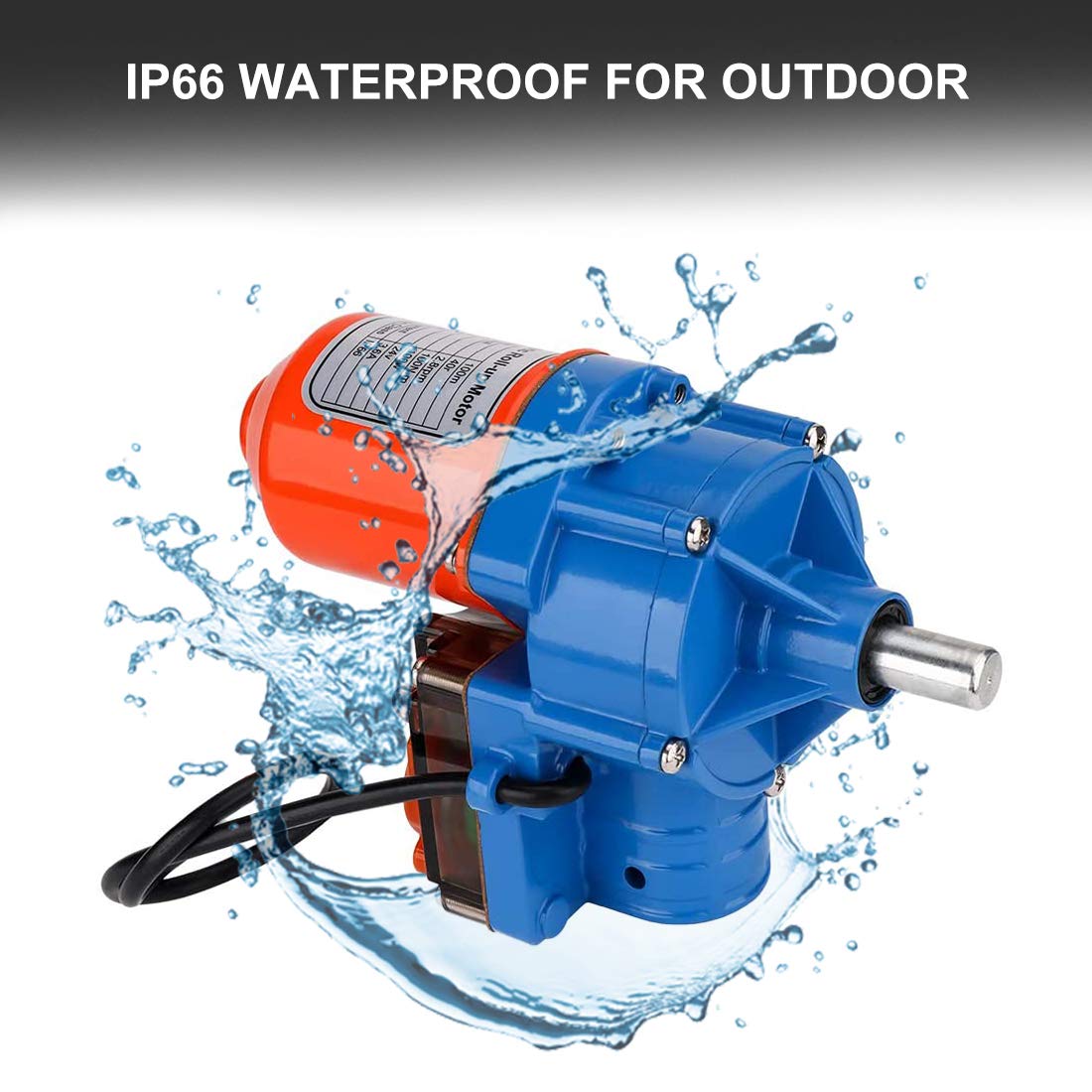

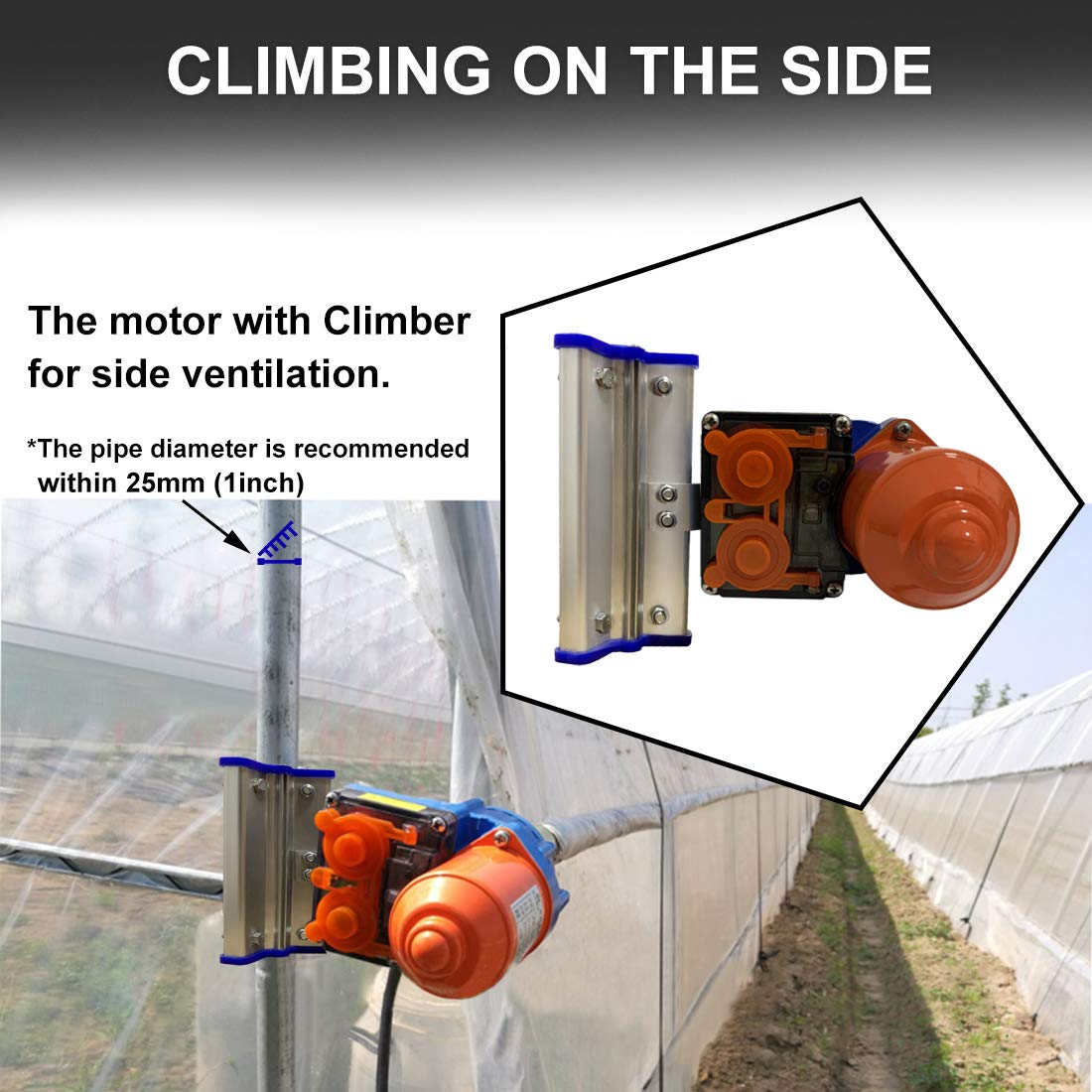

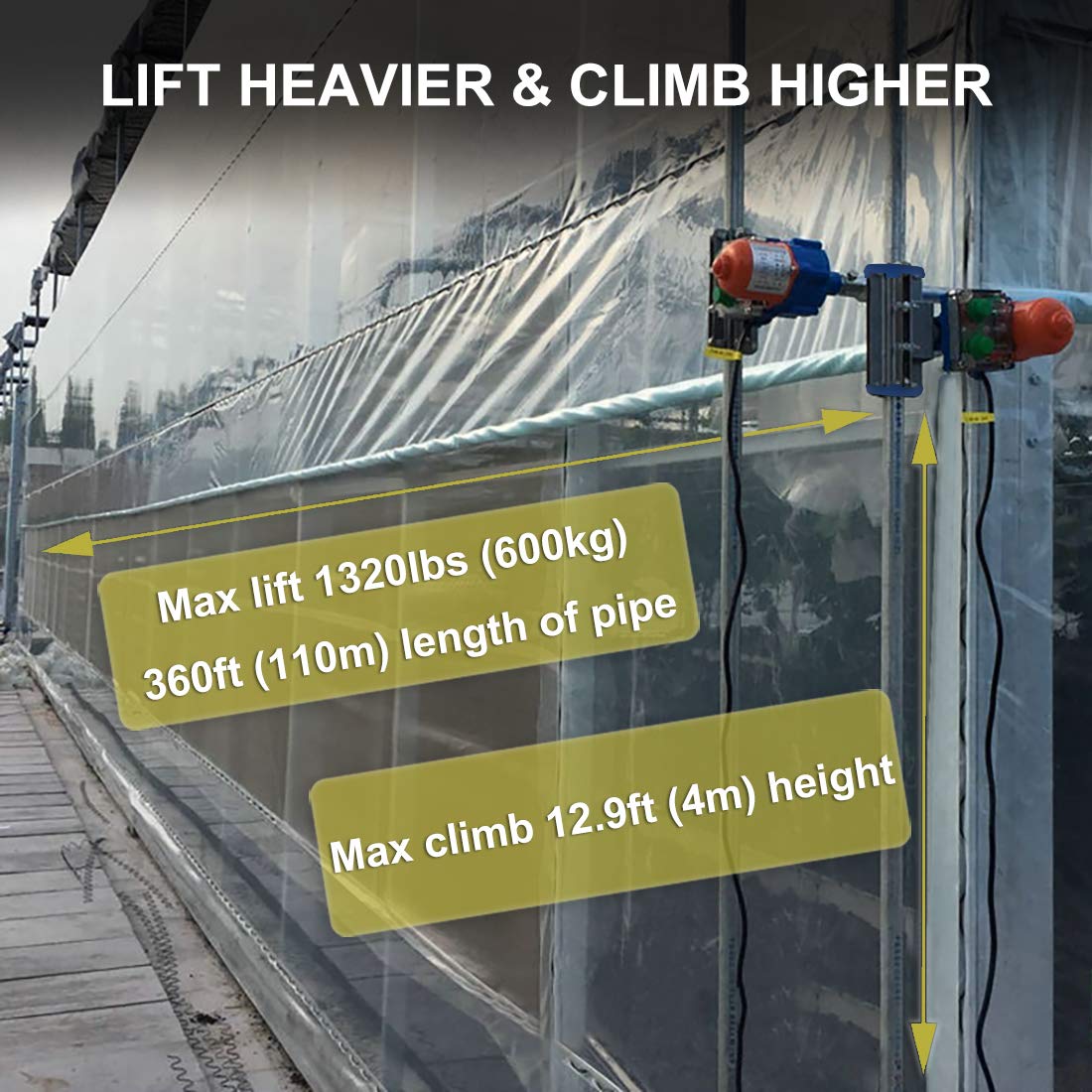

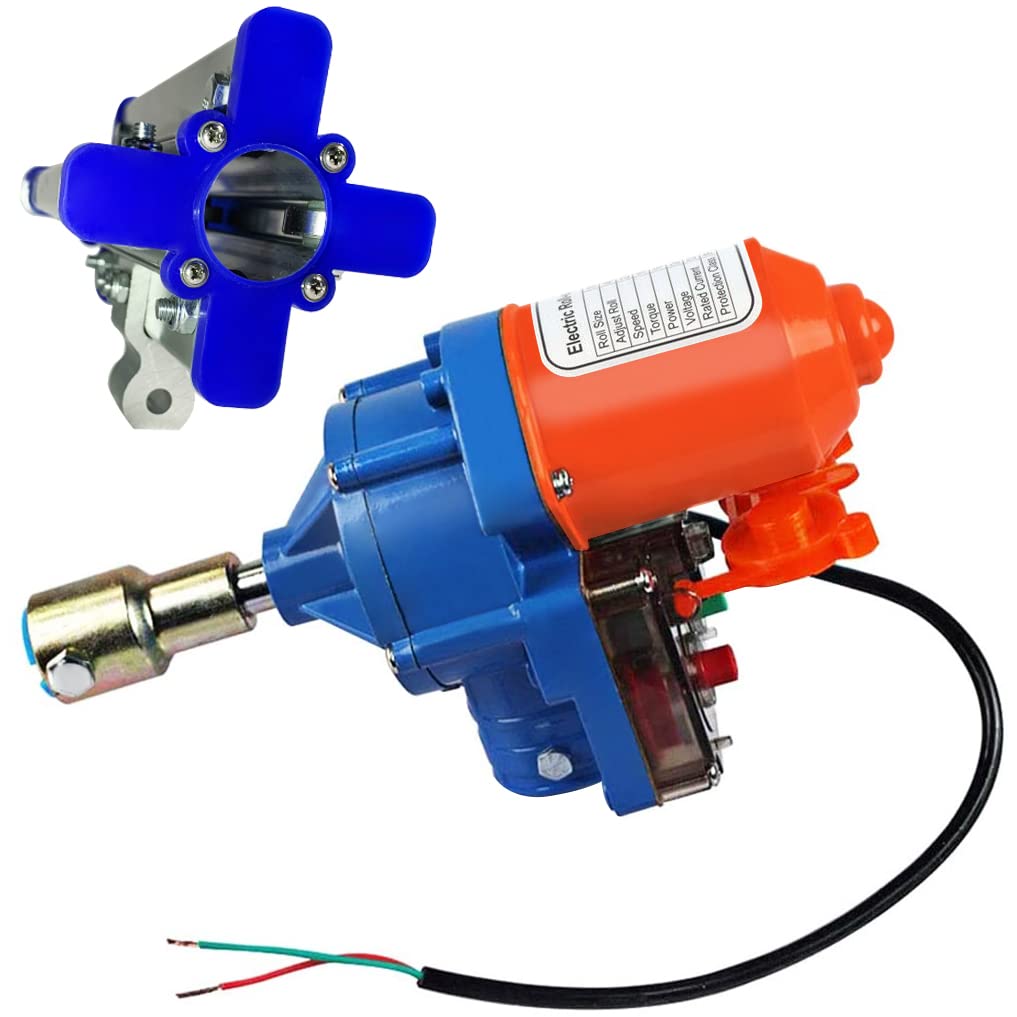

Useful in Your Greenhouse Package Include: 1* Roll Up Motor1* Creeper1* Manual The electric roll-up motor for ventilation, which is used extensively in the greenhouse. Such as the solar greenhouse, vegetable greenhouse, cultivation greenhouse, multi-span film greenhouse and other assembled greenhouse, by which to open or close the side windows and top windows through the roll of film. Accessories 1*Creeper1*Roll bar adaptor(bronze)5*Screws of M8x251*Bolt of M6x551*Nut of M6 Suggest ID 3/4" NPS roll tube and climbing tube OD: Outside Diameter Roll Up Machine Side Curtain Ventilation of Greenhouse Roll Tube Size: 5ft~360ftPower: 100 wattAdjust Roll: 40 limitsVoltage: DC 24vSpeed: 2.8 rpmRated Current: 4.0ATorque: 80 N.mProtection Class: IP66 Max roll tube length: 360ft(110m) Climb 10ft height when ID 1/2" NPS tube Climb 12.9ft height when ID 3/4" NPS tube Needs 24v power supply and DPDT switch for controlling Roll Bar Adapter The original bronze color adapter fits for ID 3/4" NPS(DN20mm) galvanized tubing, roll bar travel is 12.9ft.Insert the blue shaft washer helps to fit for ID 1/2" NPS(DN15mm) galvanized tubing, roll bar travel is 10ft. Access to the Creeper Fits for OD 1" (or ID 3/4" NPS) galvanized tubing for creeper hole.The creeper will help the roll up motor up and down in a straight line. The Limit Switch Press the knob and rotate it for setting limits, it's invalid without press down.The waterproof lid to keep upper water resistance, please close it after setting up the limit switches. Wide Use in your Greenhouse Vegetable & Herb Fruit & Flower Chicken & Livestock Save Labor UYGALAXY Greenhouse Roll Up Motor IP66 waterproof protection class.Compact size and low noise, easy installation.Can side of the roll, also can top roll.Roll up tube length from 5~360ft, climb 12.9ft height when ID 3/4" NPS roll tube.Setting the limit switches on hoop house roll up ventilation motors, roll up motor and creeper work perfectly together Tips: It's suggested OD25mm(1inch) tube for creeper, which is also named ID 3/4" NPS pipe.It's suggested to use 16 AWG wires for motors if the wire is within 165ft (50m), the extension wire is not included. UYGALAXY Greenhouse Roll Up Motor IP66 waterproof protection class.Compact size and low noise, easy installation.Can side of the roll, also can top roll.Roll up tube length from 5~360ft, climb 12.9ft height when ID 3/4" NPS roll tube.Setting the limit switches on hoop house roll up ventilation motors, roll up motor and creeper work perfectly together Tips: It's suggested OD25mm(1inch) tube for creeper, which is also named ID 3/4" NPS pipe.It's suggested to use 16 AWG wires for motors if the wire is within 165ft (50m), the extension wire is not included. Basic Controller Timer Controller Temperature Controller Roof Curtain System Side Curtain System Side Timer System Add to Cart Add to Cart Buying Options Add to Cart Add to Cart Add to Cart Customer Reviews 3.9 out of 5 stars 20 4.8 out of 5 stars 9 3.7 out of 5 stars 13 4.0 out of 5 stars 25 4.4 out of 5 stars 11 4.3 out of 5 stars 2 Price $109.99$109.99 $319.99$319.99 — no data $329.99$329.99 $335.98$335.98 $449.00$449.00 Input 110V 110V 110V~220V 110V 110V 110V Output1 24V 24V 24V 24V 24V 24V Output2 24V 24V 24V 24V 24V 24V Manual mode ✓ ✓ ✓ ✓ ✓ ✓ Auto mode - no data √ Timer √ Thermostat - no data - no data √ Timer Color Gray Gray Black Complete system Complete system Complete system Feature Controller Controller Controller Max lift 13ft Max lift 13ft Max lift 19ft
